Surface-Mount Colored SS Corner Guards
Colored stainless steel corner guards that install over drywall and other substrates with adhesive or fasteners.
Colored SS corner guards provide reliable impact protection while offering a clean, modern appearance ideal for front-of-house commercial spaces. Manufactured from type 304 stainless steel, these corner guards feature a decorative colored finish available in several standard colors. The colored finish enhances the aesthetic of high-traffic areas such as lobbies, restaurants, offices, and airports while maintaining the durability stainless steel is known for.
Unlike standard stainless steel finishes, the colored stainless steel corner protection focuses on visual appeal and ease of maintenance. Each color option is available with an optional fingerprint-resistant coating, which helps minimize visible fingerprints and smudges. This feature reduces cleaning time and keeps wall corners looking polished, even in busy environments.
We offer colored SS corner guards in a variety of wing sizes and corner radii to accommodate different wall conditions. We also offer custom sizes tailored to specific project requirements. Pre-drilled holes are available, allowing for efficient installation using adhesive or mechanical fasteners.
Because they are made of stainless steel, these corner guards maintain strength, impact resistance, and corrosion resistance. Colored SS corner guards withstand moisture, cleaning chemicals, and daily wear without sacrificing appearance. However, their primary purpose lies in protecting wall corners in public-facing spaces where cleanliness and design consistency matter.
Facilities such as hotels, casinos, transportation hubs, and commercial offices often select colored SS corner protection for their combination of durability and style. The flush-mount or surface-mount options provide flexibility, depending on the project’s aesthetic and functional needs.
For a durable, low-maintenance solution that elevates the look of any front-of-house commercial space, choose colored stainless steel corners. They deliver lasting corner protection while supporting a clean, fingerprint-resistant appearance tailored to modern commercial interiors.
Colored SS Corner Guard Features:
- Manufactured from type 304 colored stainless steel
- Standard and custom wing sizes available
- Standard and custom heights available
- Standard and custom corner radii available
- Other stainless steel grades and finishes available
Available options
-
SKU#:
CGC-50
-
Material:
Type 304 colored stainless steel
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
3 1/2-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available. Consult with factory for a recommended gauge.
CGC-50 Colored Stainless Steel Corner Guard
Corner guard manufactured from type 304 #4 satin finish colored stainless steel with 3 1/2-inch wing size.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Colored Stainless Steel
Black
Blue
Bronze
Champagne
Charcoal
Gold
Rosy Gold
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline

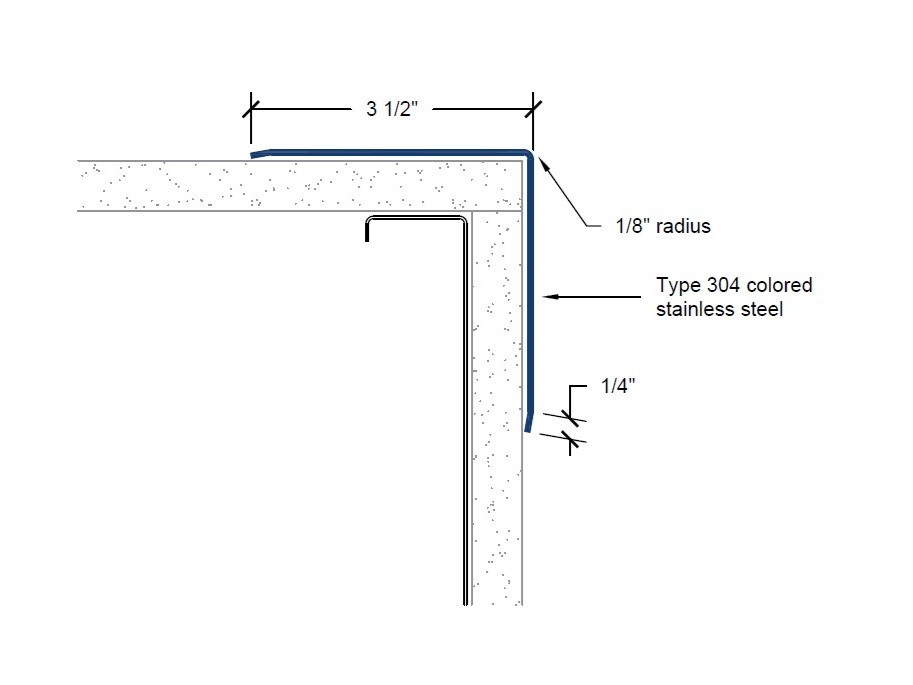

CGC-50 | 3 1/2-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CGC-51
-
Material:
Type 304 colored stainless steel
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
2-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available. Consult with factory for a recommended gauge.
CGC-51 Colored Stainless Steel Corner Guard
Corner guard manufactured from type 304 #4 satin finish colored stainless steel with 2-inch wing size.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Colored Stainless Steel
Black
Blue
Bronze
Champagne
Charcoal
Gold
Rosy Gold
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline

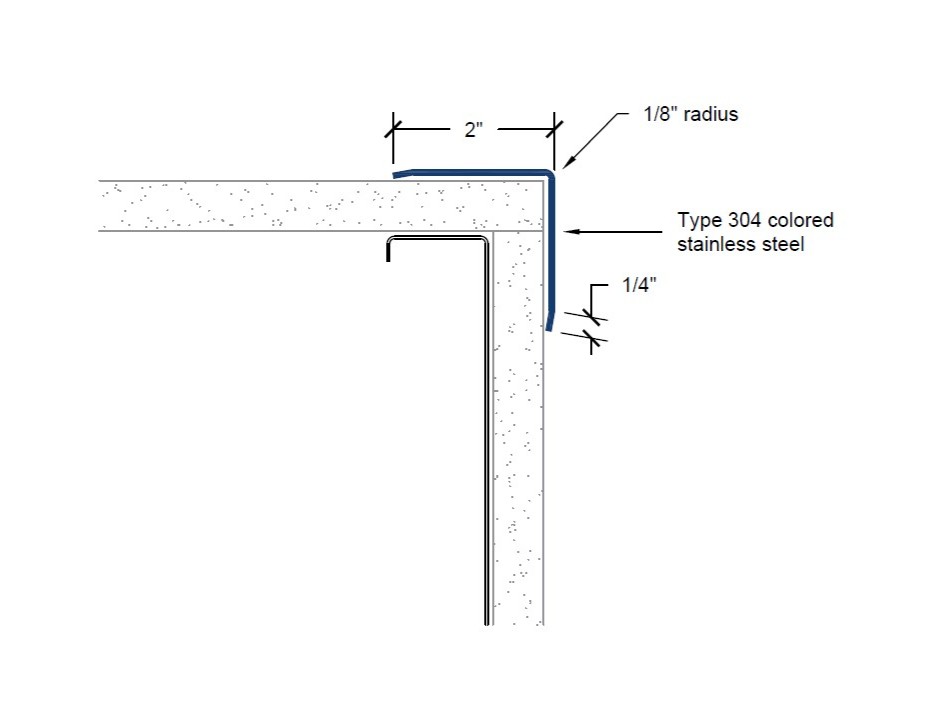

CGC-51 | 2-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CGC-52
-
Material:
Type 304 colored stainless steel
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
1-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available. Consult with factory for a recommended gauge.
CGC-52 Colored Stainless Steel Corner Guard
Corner guard manufactured from type 304 #4 satin finish colored stainless steel with 1-inch wing size.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Colored Stainless Steel
Black
Blue
Bronze
Champagne
Charcoal
Gold
Rosy Gold
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline

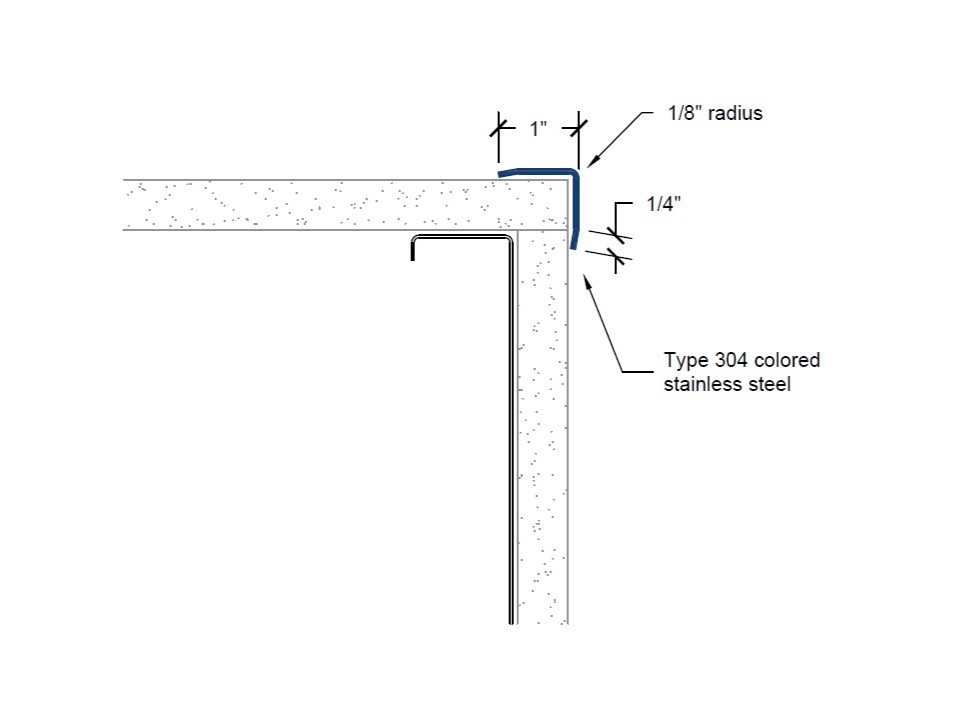

CGC-52 | 1-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CGC-55
-
Material:
Type 304 colored stainless steel
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
3 1/2-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available. Consult with factory for a recommended gauge.
CGC-55 Colored Stainless Steel Corner Guard
Corner guard manufactured from type 304 #4 satin finish colored stainless steel with 3 1/2-inch wing size and 3/4-inch corner radius.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Colored Stainless Steel
Black
Blue
Bronze
Champagne
Charcoal
Gold
Rosy Gold
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline

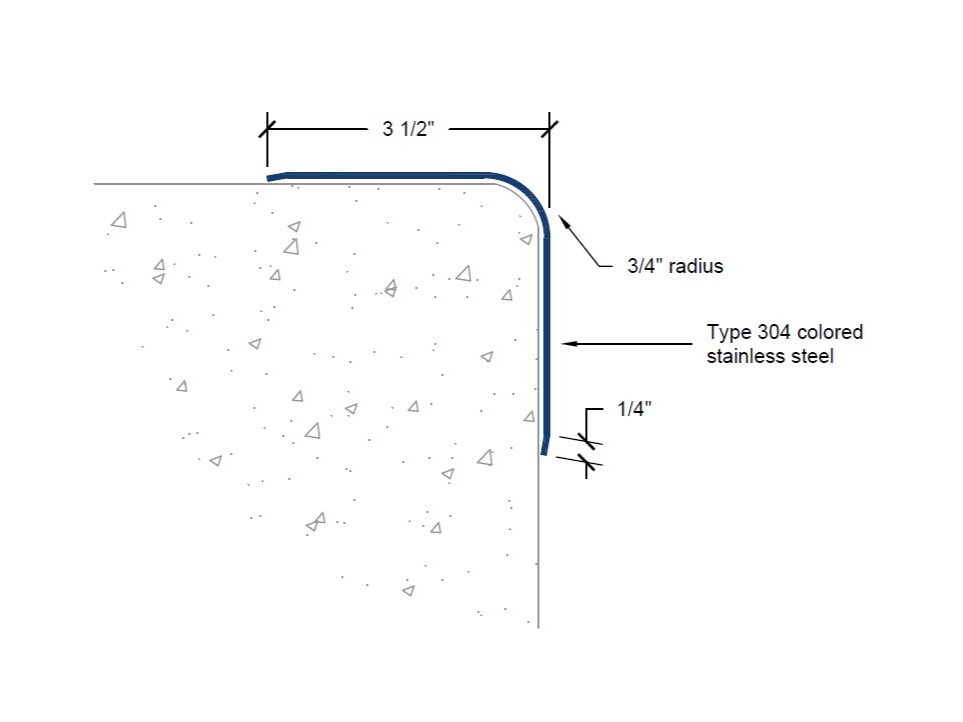

CGC-55 | 3 1/2-inch wing; 90-deg; 3/4-inch radius
No custom options are available for this product.
-
SKU#:
CGC-60
-
Material:
Type 304 colored stainless steel
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
3 1/2-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available. Consult with factory for a recommended gauge.
CGC-60 Colored Stainless Steel Corner Guard
Corner guard manufactured from type 304 #4 satin finish colored stainless steel with 3 1/2-inch wing size and 135-degree angle.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Colored Stainless Steel
Black
Blue
Bronze
Champagne
Charcoal
Gold
Rosy Gold
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline

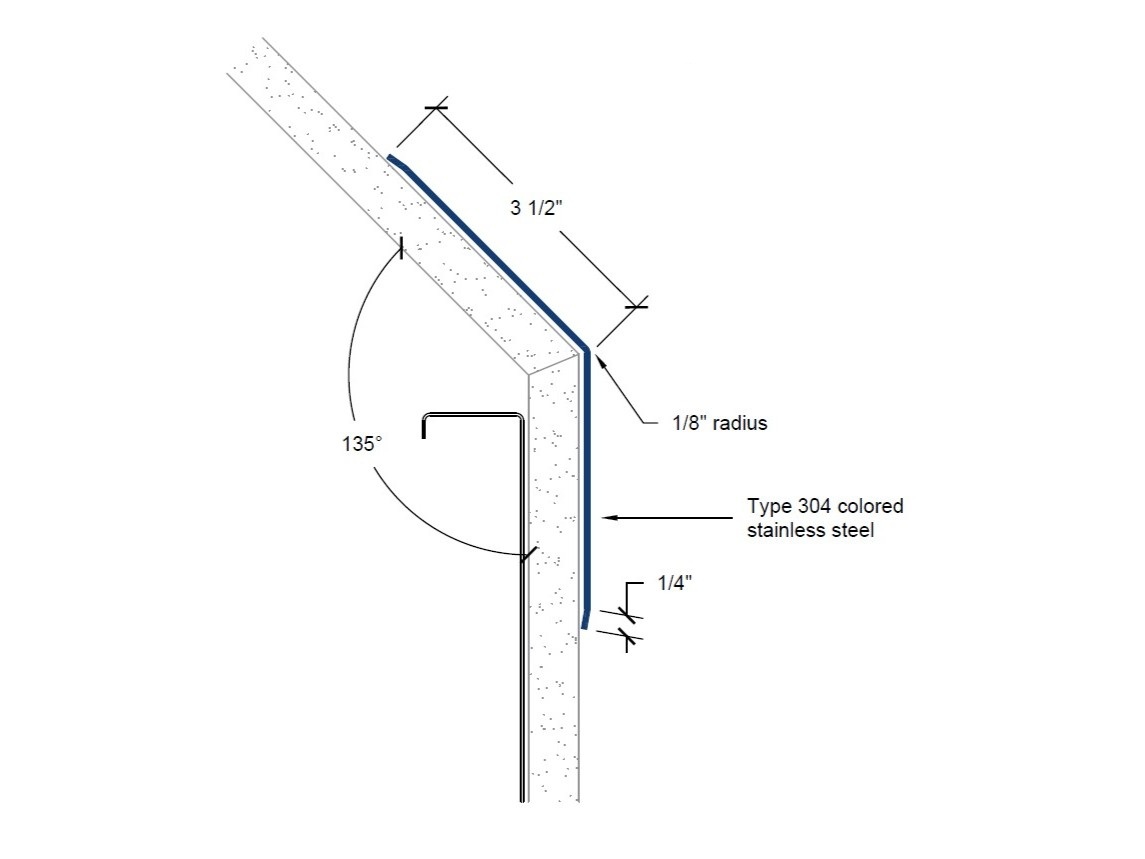

CGC-60 | 3 1/2-inch wing; 135-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CGC-65
-
Material:
Type 304 colored stainless steel
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
3 1/2-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available. Consult with factory for a recommended gauge.

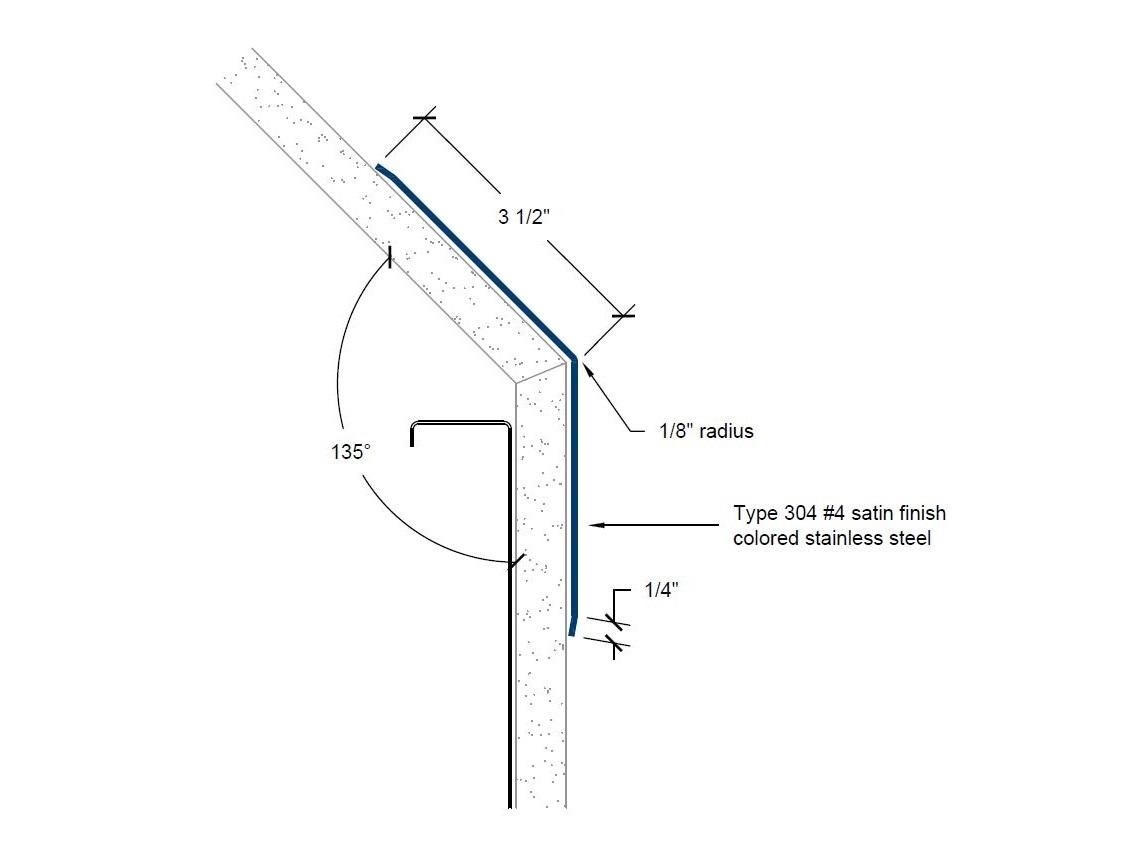

CGC-60 Colored Stainless Steel Corner Guard
Corner guard manufactured from type 304 #4 satin finish colored stainless steel with 3 1/2-inch wing size and 135-degree angle.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Colored Stainless Steel
Black
Blue
Bronze
Champagne
Charcoal
Gold
Rosy Gold
T22 Colored Stainless Steel
Amber Brass Hairline
Champagne Nickel Hairline
Onyx Black Hairline
Prestige Gold Hairline
Prestige Rosy Gold Hairline
Quartz Bronze Hairline

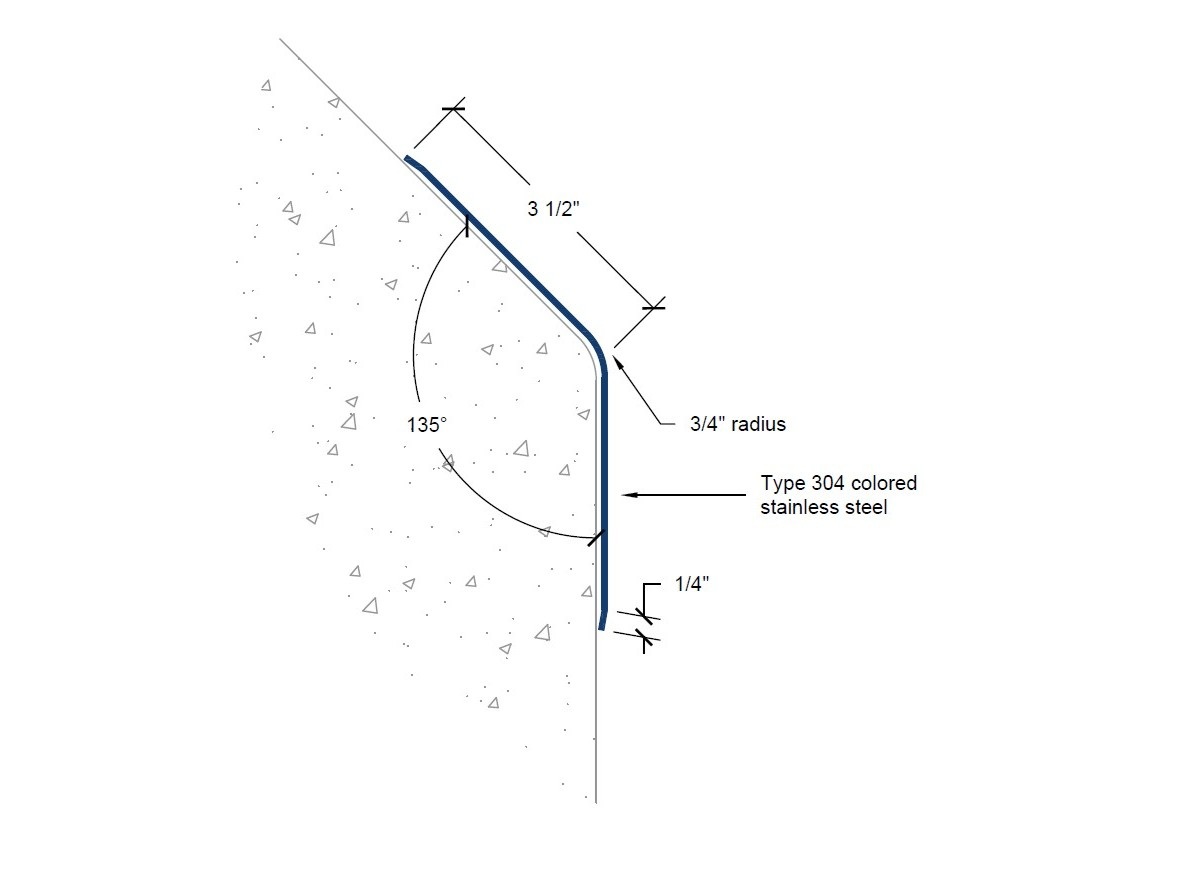

CGC-65 | 3 1/2-inch wing; 135-deg; 3/4-inch radius
No custom options are available for this product.
