Stainless Steel Rub Rail
Stainless steel rub strip that mounts to the wall with adhesive or fasteners.
Stainless steel rub rails offers simple, reliable wall protection designed for a wide range of commercial spaces. Fabricated from type 304 #4 finish stainless steel, this product provides a clean, polished look while protecting walls from repeated contact with chairs, tables, carts, and other furniture. Unlike multi-component crash rail systems, a stainless steel rub rail consists of a single flat strip that mounts directly to the wall in a continuous fashion, creating a streamlined, low-profile protective barrier.
Stainless steel rub strips come in a variety of heights and gauges to suit both aesthetic and functional project needs. Although 16-gauge stainless steel is common, we can supply virtually any gauge upon request. You can order standard lengths or opt for custom sizes manufactured to precise dimensions.
Mounting options include adhesive or mechanical fasteners, depending on the installation environment. Pre-drilled holes are available, ensuring quick and efficient attachment. Straight lengths are joined with butt seams, and outside corners are available to wrap exposed corners smoothly. For inside corners, straight lengths simply meet at a butt joint without the need for additional corner pieces.
Because it is manufactured from stainless steel, this rub rail is both non-corrosive and impact-resistant. It stands up to harsh cleaning agents, moisture, and daily wear, making it an ideal choice for classrooms, waiting rooms, lab rooms, conference areas, and other high-use environments. Common applications include hospitals, schools, laboratories, and office buildings where durability and easy maintenance are essential.
Whether the goal is protecting walls from chairs or providing a subtle visual accent, stainless steel rub rails deliver dependable performance without unnecessary complexity. For projects requiring both function and appearance, stainless steel chair rail options offer a clean, practical solution that holds up in even the toughest commercial settings.
Stainless Steel Rub Rail Features:
- Manufactured from type 304 #4 finish stainless steel
- Butt seams
- Outside corners available for a continuous installation
- Installed with adhesive or mechanical fasteners, pre-drilled holes available
- Standard and custom heights available
- Other stainless steel grades and finishes available
Available options
-

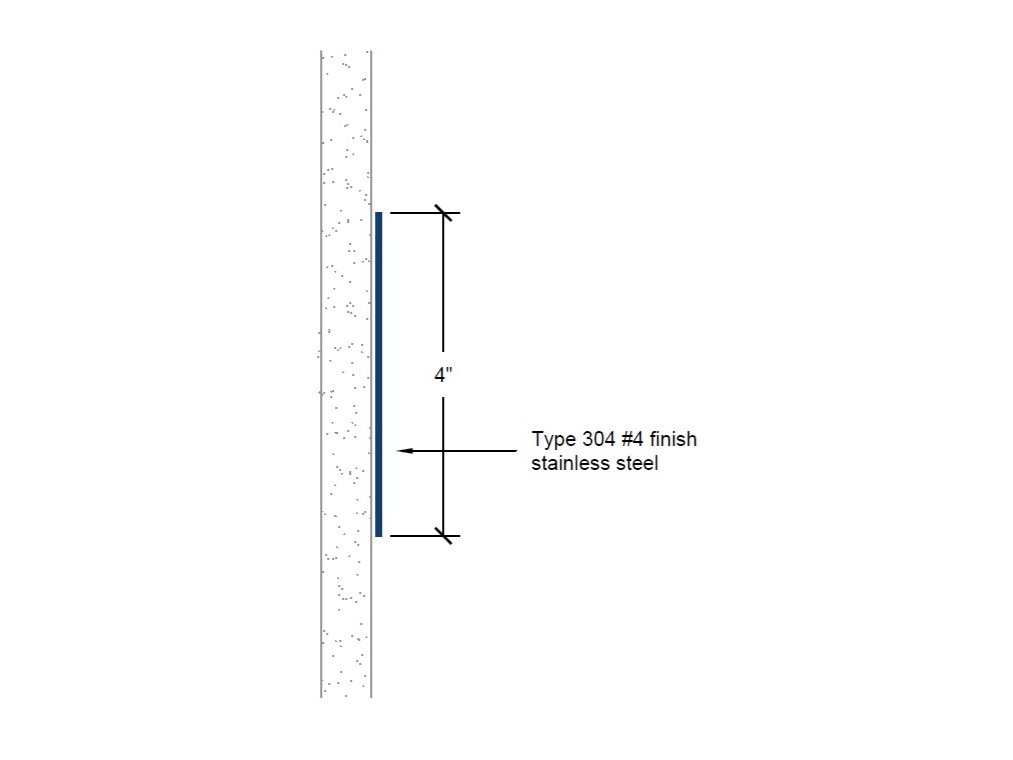

SKU#:
CRS-64
-
Material:
Type 304 #4 finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
4-inch x 96-inch or 4-inch x 120-inch
-
Height:
4-inch
-
More Info:
CRS-64 rub rails are supplied in standard lengths and cut to fit in the field by installers. Custom lengths available. Other stainless steel grades and finishes available.
CRS-64 Standard Lengths
CRS-64 rub rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

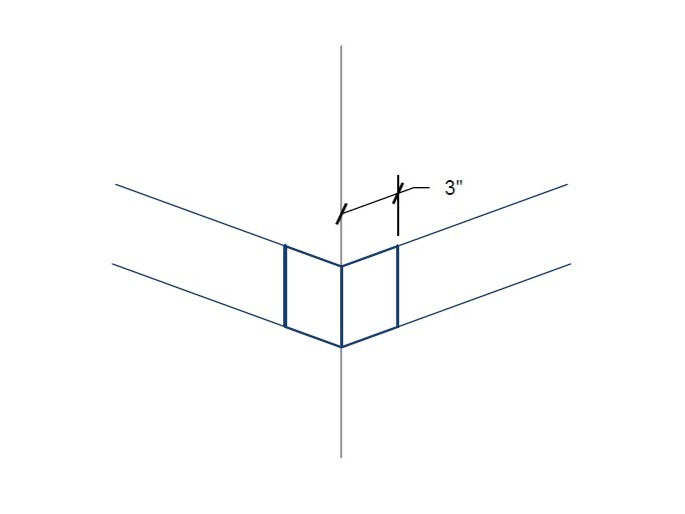

CRS-64-OC Outside Corner
4-inch high outside corner with 3-inch wing size.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CRS-64 | 4-inch profile
No custom options are available for this product.
-

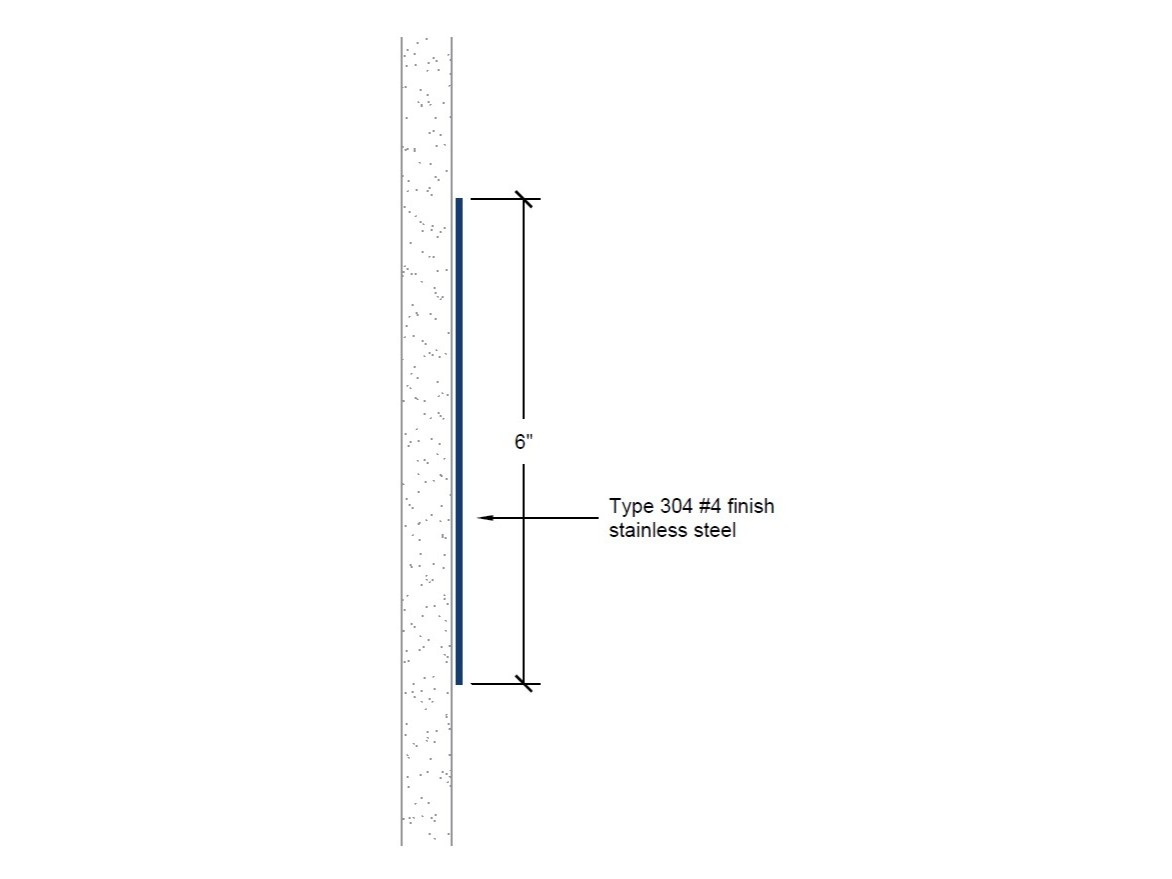

SKU#:
CRS-66
-
Material:
Type 304 #4 finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
6-inch x 96-inch or 6-inch x 120-inch
-
Height:
6-inch
-
More Info:
CRS-66 rub rails are supplied in standard lengths and cut to fit in the field by installers. Custom lengths available. Other stainless steel grades and finishes available.
CRS-66 Standard Lengths
CRS-66 rub rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

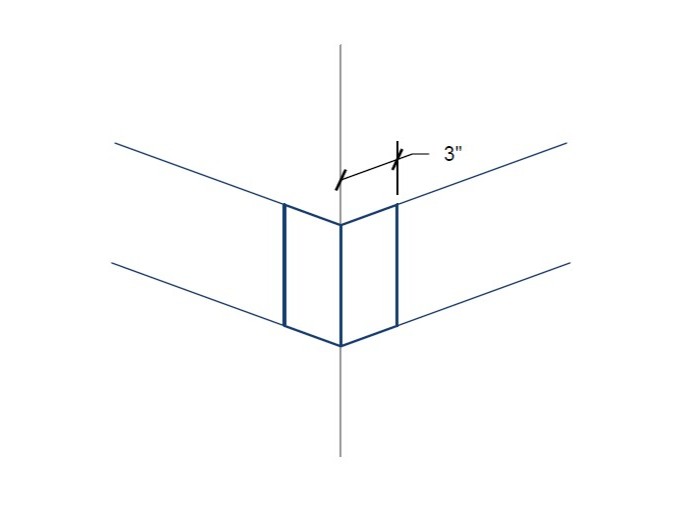

CRS-66-OC Outside Corner
6-inch high outside corner with 3-inch wing size.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CRS-66 | 6-inch profile
No custom options are available for this product.
-

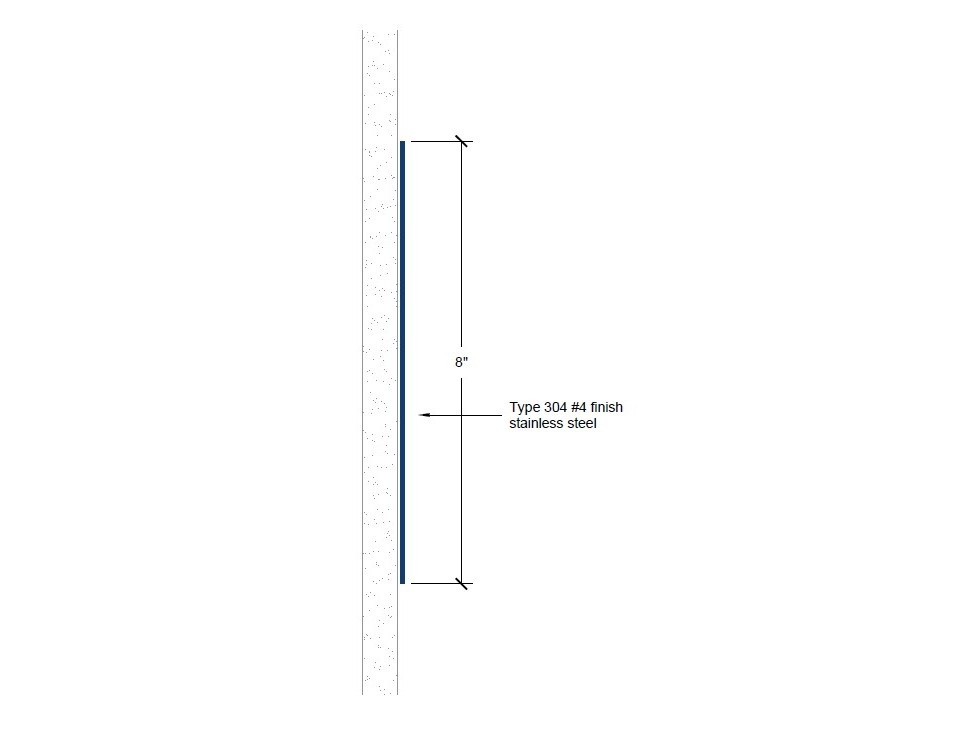

SKU#:
CRS-68
-
Material:
Type 304 #4 finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
8-inch x 96-inch or 8-inch x 120-inch
-
Height:
8-inch
-
More Info:
CRS-68 rub rails are supplied in standard lengths and cut to fit in the field by installers. Custom lengths available. Other stainless steel grades and finishes available.
CRS-68 Standard Lengths
CRS-68 rub rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

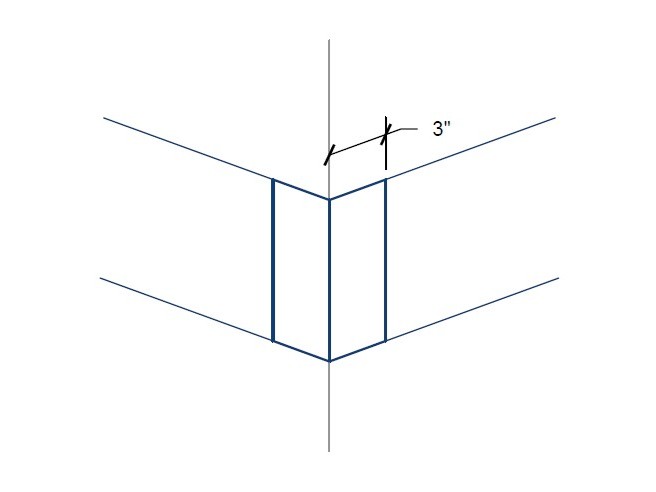

CRS-68-OC Outside Corner
8-inch high outside corner with 3-inch wing size.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CRS-68 | 8-inch profile
No custom options are available for this product.
-

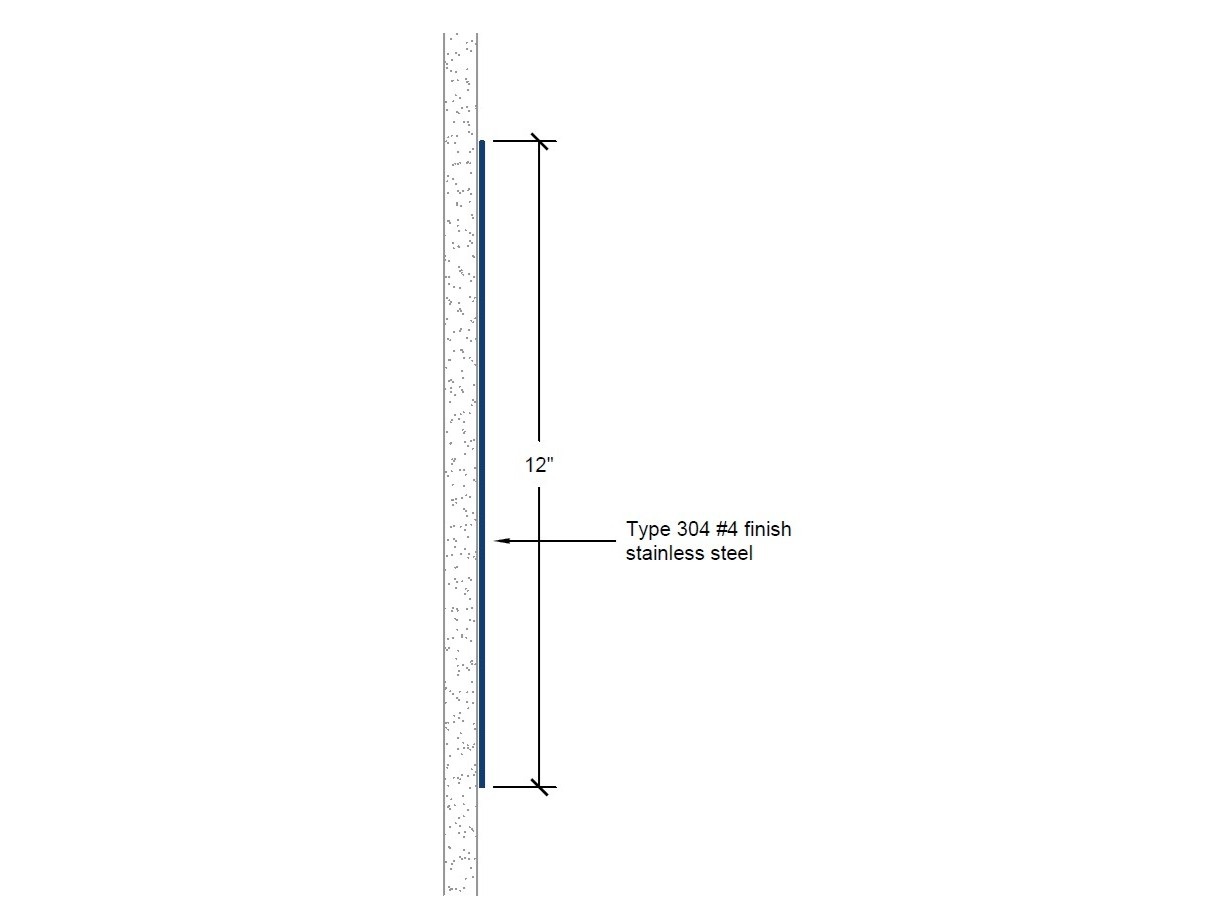

SKU#:
CRS-612
-
Material:
Type 304 #4 finish stainless steel (16ga standard)
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
12-inch x 96-inch or 12-inch x 120-inch
-
Height:
12-inch
-
More Info:
CRS-612 rub rails are supplied in standard lengths and cut to fit in the field by installers. Custom lengths available. Other stainless steel grades and finishes available.
CRS-612 Standard Lengths
CRS-612 rub rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

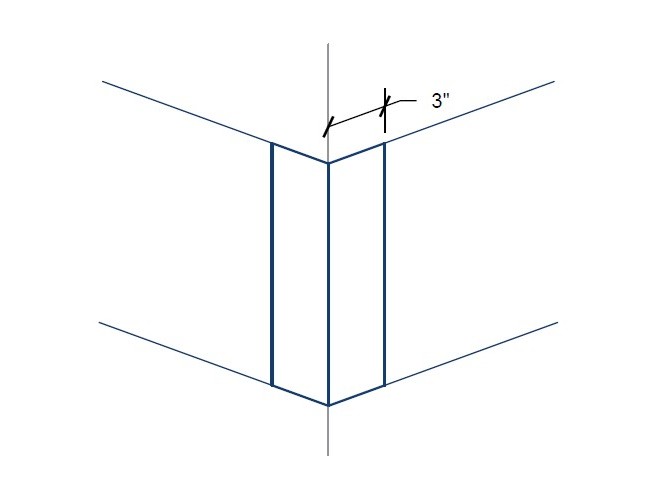

CRS-612-OC Outside Corner
12-inch high outside corner with 3-inch wing size.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel
#4 finish
CRS-612 | 12-inch profile
No custom options are available for this product.
