Stainless Steel Diamond Plate Corner Guards
Stainless Steel diamond plate corner guards that install over drywall and other substrates with adhesive or fasteners.
SS diamond plate corner guards deliver maximum protection in harsh commercial environments. Manufactured from 1/8-inch thick type 304 stainless steel diamond plate, this corner guard features an industrial mill finish that is both functional and visually rugged. Its raised diamond pattern helps disguise scratches and abrasion marks, making it ideal for high-traffic and impact-prone areas.
We offer a variety of wing sizes and corner radii to meet different facility needs. Whether you require a standard or custom size, stainless steel diamond plate corner guards provide consistent performance and a durable, heavy-duty solution. Standard sizes can be cut to fit in the field, allowing installers flexibility during installation. We also offer custom sizes when you require precise dimensions.
Installation options include adhesive or mechanical fasteners, ensuring a secure fit in any setting. For added convenience, pre-drilled holes are available. This makes installation faster and easier for field crews working in fast-paced commercial environments.
SS diamond plate corner guards work especially well in loading docks, shipping and receiving areas, and similar heavy-duty commercial settings. Since they are made from non-corrosive stainless steel, they withstand exposure to moisture, chemicals, and constant impact. That’s why hospitals, data centers, and other facilities use diamond plate corners where durability and functionality matter.
Because of its robust construction, diamond plate corner guards offer a level of protection beyond standard wall guards. The material’s substantial thickness resists denting and damage from equipment, carts, and freight handling activities.
When protecting your facility’s corners, choosing a diamond plate corner guard ensures long-lasting, industrial-grade performance. For dependable corner protection that handles daily abuse while maintaining an industrial look, select the SS diamond plate corner guard. It provides both strength and peace of mind for high-impact environments.
SS Diamond Plate Corner Guard Features:
- Manufactured from type 304 mill finish stainless steel diamond plate
- Standard and custom wing sizes available
- Standard and custom heights available
- Standard and custom corner radii available
- Other stainless steel grades and finishes available
Available options
-
SKU#:
CGSD-50
-
Material:
Type 304 mill finish stainless steel diamond plate (1/8-inch minimum)
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
3 1/2-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
CGSD-50 Stainless Steel Diamond Plate Corner Guard
Stainless steel diamond plate corner guard manufactured from type 304 mill finish stainless steel diamond plate with 3 1/2-inch wing size.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel Diamond Plate
Mill finish
CGSD-50 | 3 1/2-inch wing; 90-deg; 3/16-inch radius
No custom options are available for this product.
-
SKU#:
CGSD-51
-
Material:
Type 304 mill finish stainless steel diamond plate (1/8-inch minimum)
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
2-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
CGSD-51 Stainless Steel Diamond Plate Corner Guard
Stainless steel diamond plate corner guard manufactured from type 304 mill finish stainless steel diamond plate with 2-inch wing size.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel Diamond Plate
Mill finish

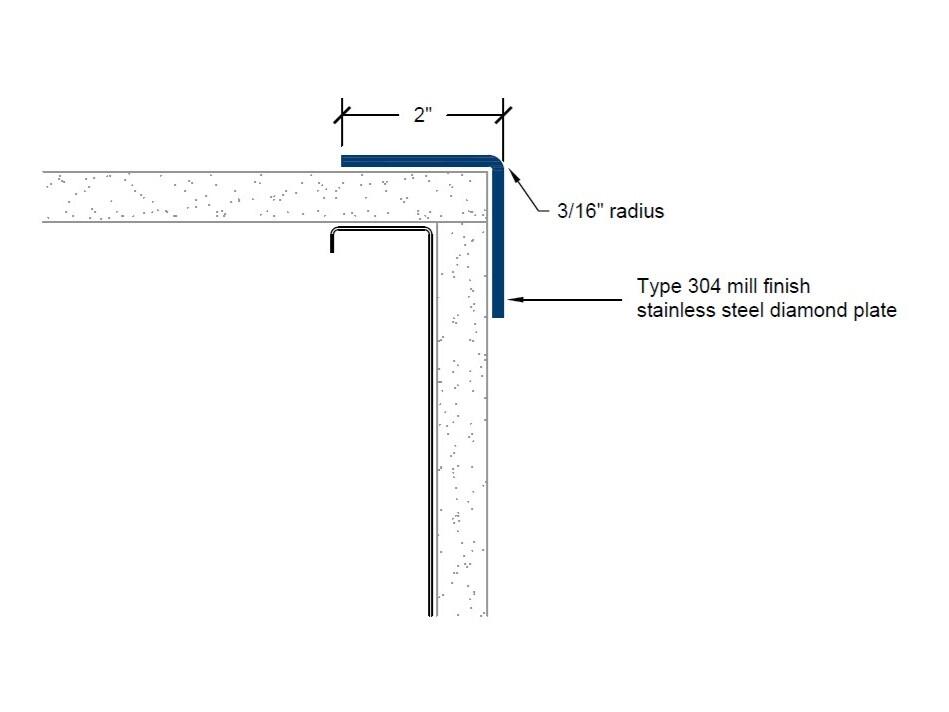

CGSD-51 | 2-inch wing; 90-deg; 3/16-inch radius
No custom options are available for this product.
-
SKU#:
CGSD-55
-
Material:
Type 304 mill finish stainless steel diamond plate (1/8-inch minimum)
-
Mounting Options:
ADH-50 adhesive or mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
3 1/2-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
CGSD-55 Stainless Steel Diamond Plate Corner Guard
Stainless steel diamond plate corner guard manufactured from type 304 mill finish stainless steel diamond plate with 3 1/2-inch wing size and 7/8-inch bull-nose corner radius.
ADH-50 Adhesive
Protek ADH-50 is a one-component, low-modulus, moisture curing, advanced polymer adhesive and sealant. ADH-50 cures rapidly and delivers aggressive adhesion with most common construction substrates.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Stainless Steel Diamond Plate
Mill finish
CGSD-55 | 3 1/2-inch wing; 90-deg; 7/8-inch radius
No custom options are available for this product.
