HIPS Stainless Steel Floor-Mounted Rail

2-inch diameter stainless steel crash rail that mounts to the floor with removable stainless steel stanchions.

The HIPS stainless steel floor-mounted rail provides dependable protection for open-floor assets in high-traffic commercial settings such as supermarkets, department stores, and distribution areas. Manufactured from 2-inch diameter type 304 stainless steel tubing, this modular system defends fixtures, refrigeration units, and merchandise displays from carts, equipment, and pedestrian impact.

The HIPS rail mounts with stainless steel stanchions that rest inside stainless steel receptacles. The tubular rail threads through the stanchions and secures in place with stainless steel set screws. The rail system is held upright only by gravity, so each assembly remains fully removable—without the need for unfastening hardware. This design allows for quick relocation, reconfiguration, or replacement without disrupting floor finishes or layout.

Installers cut the HIPS floor rail to fit in the field from standard lengths. Cut ends are cleanly concealed inside the stanchions, maintaining a polished, finished look even after site modifications. This field flexibility makes it an excellent choice for retail environments that frequently change floor layouts or install new equipment.

The HIPS floor-mounted crash rail offers durable, corrosion-resistant performance while maintaining a low-profile aesthetic. Though constructed entirely of stainless steel, it does not include seamless welded support posts like the TRS-200. Instead, it favors ease of installation and adaptability over hygienic design, making it better suited for open commercial floors than for sterile environments.

Choose the HIPS stainless steel crash rail when you need strong, adjustable protection for open floor equipment and displays. Overall, its modular, field-cuttable design and removable functionality make it a go-to solution for retailers looking to protect assets without compromising flexibility or style.

HIPS Floor Rail Features:

  • Manufactured from 2-inch O.D. type 304 stainless steel tubing with brushed finish
  • Stainless steel support stanchions and receptacles
  • Factory formed corners
  • Seamless welded ends
  • Standard and custom profiles available
  • Other stainless steel grades and finishes available

Available options

  • SKU#:

    HSFR96-KIT

  • Material:

    2-inch O.D. type 304 stainless steel tubing with brushed finish

  • Standard Sizes:

    96-inch lengths

  • Profile:

    2-inch O.D. tubing x 6 3/4-inch height

  • More Info:

    Each HSFR96-KIT includes a 96-inch length of stainless steel rail along with three stainless steel support stanchions and mounting receptacles. Stanchions rest inside the receptacles for easy removal.

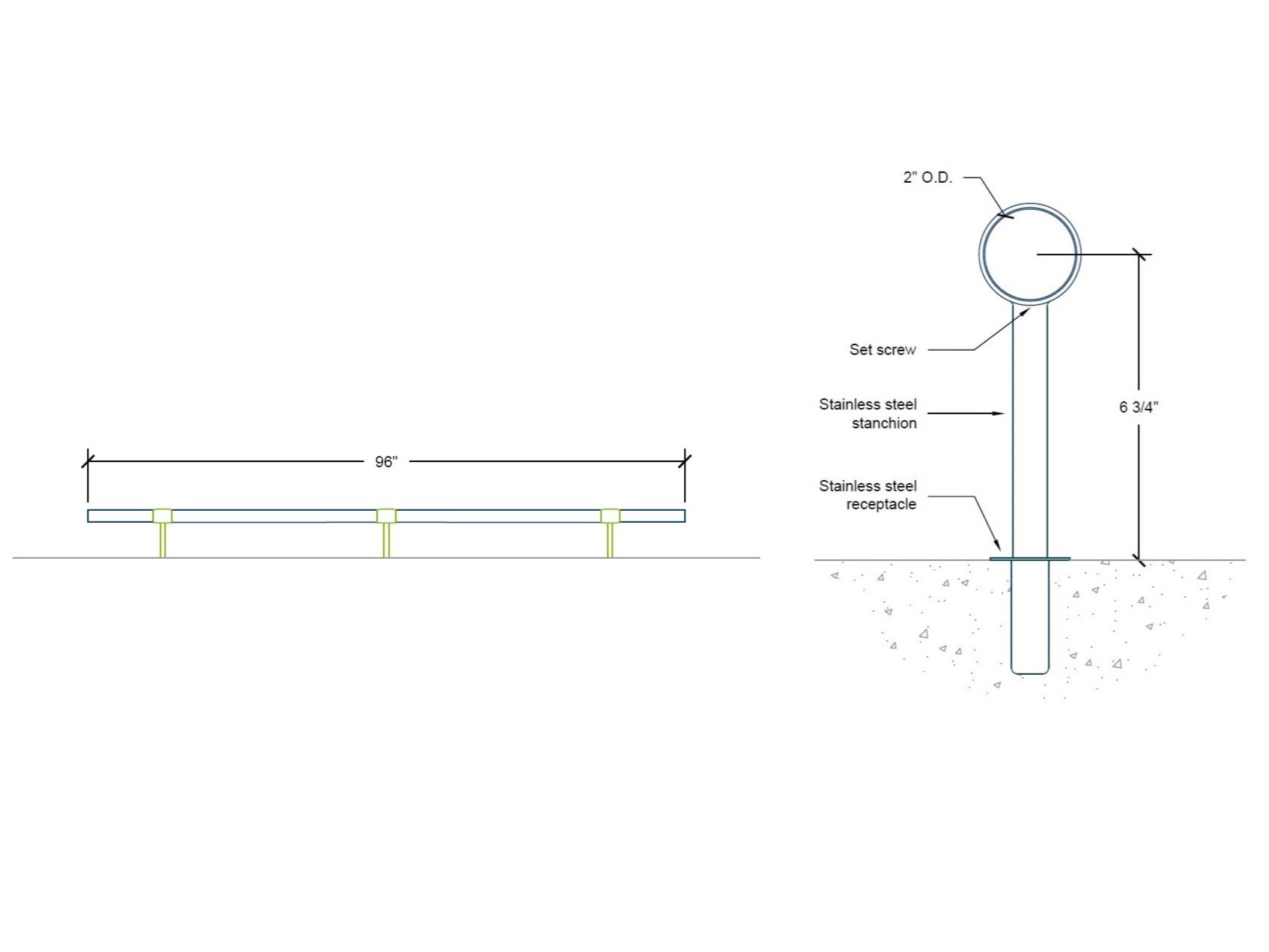

HSFR96-KIT HIPS Rail

HSFR96-KIT HIPS Rail

The HSFR96-KIT Hips rail is a 2-inch O.D. floor-mounted stainless steel crash rail that is supplied in 96-inch lengths. Three stainless steel stanchions and receptacles are also included with each 96-inch length.

HSFR96-KIT

Select the files that you want to download and click “Download” to get the files.

Cad-drawing

dwg

Installation-instructions

pdf

Cleaning-maintenance

pdf

Roll over a color or texture sample to view a larger swatch.

Click the colors or textures required for your swatch request.

Stainless Steel

#4 finish

HSFR96-KIT | 96-inch Length

No custom options are available for this product.

    Note: You may upload only one PDF file (2MB file size).

    Click to browse
    or drag and drop your files


    Clear

    • SKU#:

      HSFR120-KIT

    • Material:

      2-inch O.D. type 304 stainless steel tubing with brushed finish

    • Standard Sizes:

      120-inch lengths

    • Profile:

      2-inch O.D. tubing x 6 3/4-inch height

    • More Info:

      Each HSFR120-KIT includes a 120-inch length of stainless steel rail along with three stainless steel support stanchions and mounting receptacles. Stanchions rest inside the receptacles for easy removal.

    HSFR120-KIT HIPS Rail

    HSFR120-KIT HIPS Rail

    The HSFR120-KIT Hips rail is a 2-inch O.D. floor-mounted stainless steel crash rail that is supplied in 120-inch lengths. Three stainless steel stanchions and receptacles are also included with each 120-inch length.

    HSFR120-KIT

    Select the files that you want to download and click “Download” to get the files.

    Cad-drawing

    dwg

    Installation-instructions

    pdf

    Cleaning-maintenance

    pdf

    Roll over a color or texture sample to view a larger swatch.

    Click the colors or textures required for your swatch request.

    Stainless Steel

    #4 finish

    HSFR120-KIT | 120-inch Length

    No custom options are available for this product.

      Note: You may upload only one PDF file (2MB file size).

      Click to browse
      or drag and drop your files


      Clear

      • SKU#:

        HSFR144-KIT

      • Material:

        2-inch O.D. type 304 stainless steel tubing with brushed finish

      • Standard Sizes:

        144-inch lengths

      • Profile:

        2-inch O.D. tubing x 6 3/4-inch height

      • More Info:

        Each HSFR144-KIT includes a 144-inch length of stainless steel rail along with three stainless steel support stanchions and mounting receptacles. Stanchions rest inside the receptacles for easy removal.

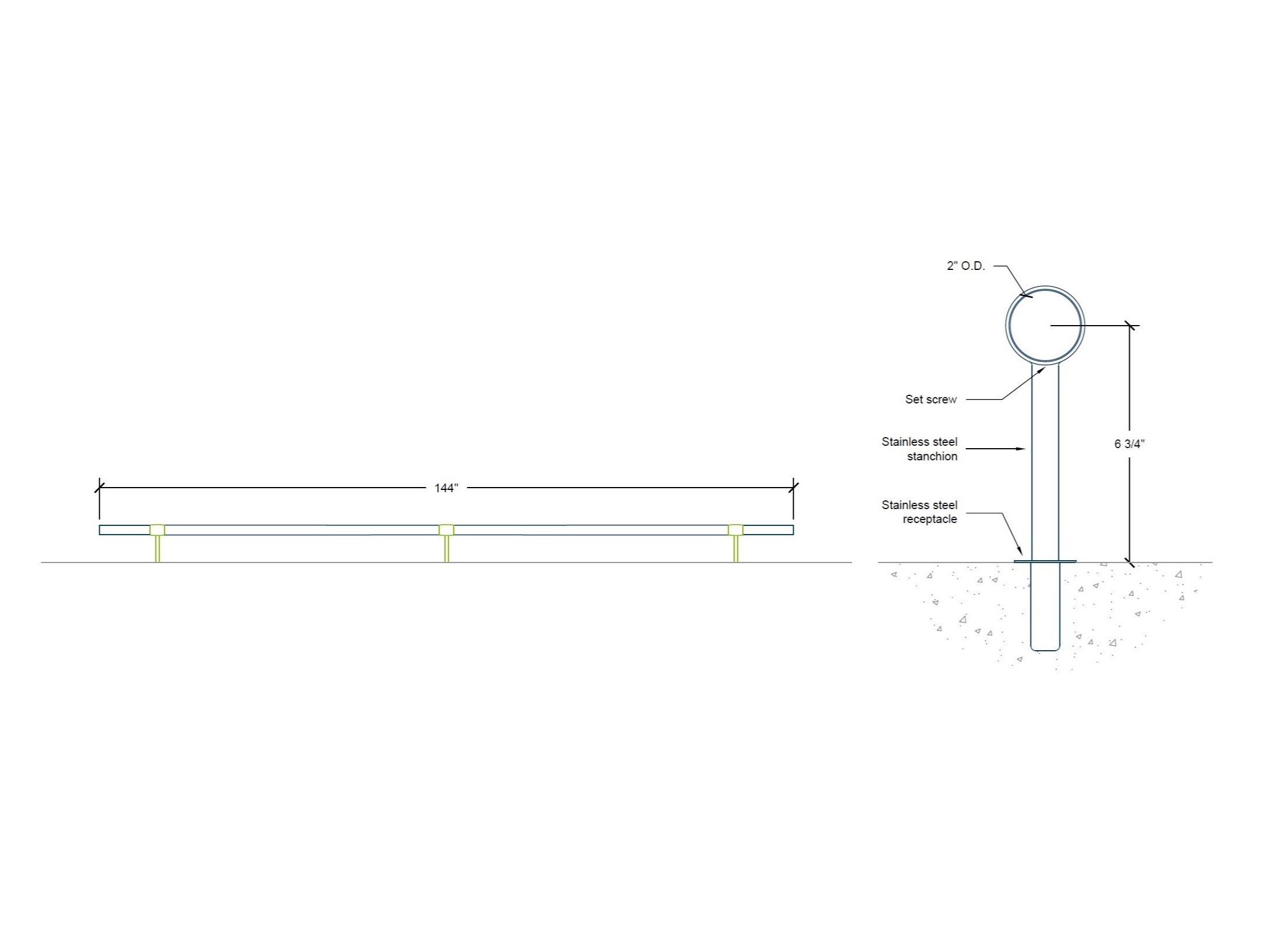

      HSFR144-KIT HIPS Rail

      HSFR144-KIT HIPS Rail

      The HSFR144-KIT Hips rail is a 2-inch O.D. floor-mounted stainless steel crash rail that is supplied in 144-inch lengths. Three stainless steel stanchions and receptacles are also included with each 144-inch length.

      HSFR144-KIT

      Select the files that you want to download and click “Download” to get the files.

      Cad-drawing

      dwg

      Installation-instructions

      pdf

      Cleaning-maintenance

      pdf

      Roll over a color or texture sample to view a larger swatch.

      Click the colors or textures required for your swatch request.

      Stainless Steel

      #4 finish

      HSFR144-KIT | 144-inch Length
