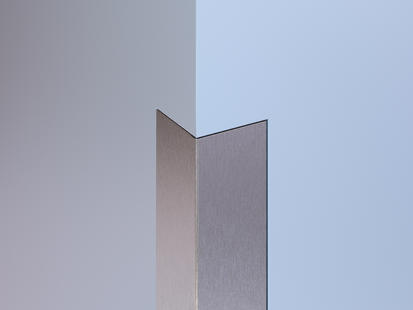

Flush-Mount Stainless Steel Corner Guards

Stainless steel corner guards that install directly to studs to create a flush finish with drywall or other substrates.

Stainless steel corner guards are an essential solution for protecting vulnerable corners in high-traffic commercial environments. Our flush-mount stainless steel corner guards offer a sleek, integrated appearance by mounting directly to wall studs and sitting flush with the finished drywall. The flush mounting creates a seamless transition between corner protection and the surrounding wall surface.

Crafted from type 304 stainless steel with a #4 finish, these flush-mount corner guards combine durability with a refined look. They resist corrosion, stand up to harsh chemical cleaners, and support easy maintenance. The product performs especially well in wet or hygienic environments such as clean rooms, commercial kitchens, and laboratories.

Furthermore, we offer a wide variety of wing sizes and corner radii to accommodate different wall conditions and design requirements. While 16-gauge stainless steel is standard, we can fabricate corner guards in nearly any gauge to meet your project’s durability or aesthetic needs. Each flush-mount stainless steel corner guard comes with pre-drilled holes for easy installation and is available in any height to ensure a precise fit.

Because the guard installs directly to wall framing, it provides structural strength and helps prevent damage from carts, equipment, and pedestrian traffic. This makes it ideal for loading docks, corridors, and other demanding commercial spaces. The flush installation not only enhances impact resistance but also offers a more architecturally integrated finish than surface-mount alternatives.

Whether you’re outfitting a hospital corridor or airport terminal, flush-mount stainless steel corner guards deliver both durability and design continuity. Its hygienic properties, ease of cleaning, and structural resilience make it a trusted choice for professionals in healthcare, transit, and food service industries.

Choose flush-mount stainless steel corners when your project demands sleek, sanitary, and heavy-duty wall protection.

Flush-Mount Stainless Steel Corner Guard Features:

  • Manufactured from type 304 #4 finish stainless steel
  • Standard and custom wing sizes available
  • Standard and custom heights available
  • Standard and custom corner radiuses available
  • Other stainless steel grades and finishes available

Available options

  • SKU#:

    CG-300

  • Material:

    Type 304 #4 finish stainless steel (16ga standard)

  • Mounting Options:

    Mechanical fasteners

  • Standard Sizes:

    48-inch, 96-inch, 120-inch

  • More Info:

    Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.

CG-300 Stainless Steel Corner Guard

CG-300 Stainless Steel Corner Guard

Flush-mount stainless steel corner guard manufactured from type 304 #4 satin finish stainless steel with 3-inch wing size.

CG-300

Select the files that you want to download and click “Download” to get the files.

Cad-drawing

dwg

Installation-instructions

pdf

Cleaning-maintenance

pdf

Roll over a color or texture sample to view a larger swatch.

Click the colors or textures required for your swatch request.

Stainless Steel

#4 finish

CG-300 | 3-inch wing; 90-deg; 1/8-inch radius

No custom options are available for this product.

    Note: You may upload only one PDF file (2MB file size).

    Click to browse
    or drag and drop your files


    Clear

    • SKU#:

      CG-200

    • Material:

      Type 304 #4 finish stainless steel (16ga standard)

    • Mounting Options:

      Mechanical fasteners

    • Standard Sizes:

      48-inch, 96-inch, 120-inch

    • More Info:

      Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.

    CG-200 Stainless Steel Corner Guard

    CG-200 Stainless Steel Corner Guard

    Flush-mount stainless steel corner guard manufactured from type 304 #4 satin finish stainless steel with 2-inch wing size.

    CG-200

    Select the files that you want to download and click “Download” to get the files.

    Cad-drawing

    dwg

    Installation-instructions

    pdf

    Cleaning-maintenance

    pdf

    Roll over a color or texture sample to view a larger swatch.

    Click the colors or textures required for your swatch request.

    Stainless Steel

    #4 finish

    CG-200 | 2-inch wing; 90-deg; 1/8-inch radius

    No custom options are available for this product.

      Note: You may upload only one PDF file (2MB file size).

      Click to browse
      or drag and drop your files


      Clear

      • SKU#:

        CG-150

      • Material:

        Type 304 #4 finish stainless steel (16ga standard)

      • Mounting Options:

        Mechanical fasteners

      • Standard Sizes:

        48-inch, 96-inch, 120-inch

      • More Info:

        Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.

      CG-150 Stainless Steel Corner Guard

      CG-150 Stainless Steel Corner Guard

      Flush-mount stainless steel corner guard manufactured from type 304 #4 satin finish stainless steel with 1 1/2-inch wing size.

      CG-150

      Select the files that you want to download and click “Download” to get the files.

      Cad-drawing

      dwg

      Installation-instructions

      pdf

      Cleaning-maintenance

      pdf

      Roll over a color or texture sample to view a larger swatch.

      Click the colors or textures required for your swatch request.

      Stainless Steel

      #4 finish

      CG-150 | 1 1/2-inch wing; 90-deg; 1/8-inch radius

      No custom options are available for this product.

        Note: You may upload only one PDF file (2MB file size).

        Click to browse
        or drag and drop your files


        Clear

        • SKU#:

          CG-305

        • Material:

          Type 304 #4 finish stainless steel (16ga standard)

        • Mounting Options:

          Mechanical fasteners

        • Standard Sizes:

          48-inch, 96-inch, 120-inch

        • More Info:

          Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.

        CG-305 Stainless Steel Corner Guard

        CG-305 Stainless Steel Corner Guard

        Flush-mount stainless steel corner guard manufactured from type 304 #4 satin finish stainless steel with 3-inch wing size and 3/4″ rounded radius.

        CG-305

        Select the files that you want to download and click “Download” to get the files.

        Cad-drawing

        dwg

        Installation-instructions

        pdf

        Cleaning-maintenance

        pdf

        Roll over a color or texture sample to view a larger swatch.

        Click the colors or textures required for your swatch request.

        Stainless Steel

        #4 finish

        CG-305 | 3-inch wing; 90-deg; 3/4-inch radius
