Flush-Mount Patterned SS Corner Guards
Patterned stainless steel corner guards that install directly to studs to create a flush finish with drywall or other substrates.
Flush-Mount patterned SS corner guards offer both functional protection and decorative appeal for front-of-house commercial spaces. Manufactured from type 304 patterned stainless steel, these corner guards mount flush with drywall to provide a seamless, built-in look. While they protect outside corners from impact, they also add a distinctive design element to high-traffic environments such as patient corridors, lobbies, airports, and other public-facing areas.
Unlike standard surface-mount options, flush-mount patterned SS corner guards install directly to wall studs and feature a reveal edge that finishes flush with the surrounding wall. This setup creates a clean, modern appearance while maintaining long-lasting corner protection. Available in several decorative patterns, these guards help conceal scratches and abrasion damage that may occur from carts, luggage, or daily wear.
We offer a variety of wing sizes and corner radii to fit different wall conditions. Standard lengths can be cut to size on-site, and custom sizes are also available to meet specific design requirements. Additionally, pre-drilled holes come standard, allowing for quicker and easier installation.
Because of the textured finish, patterned corner guards are more common in decorative applications rather than strict hygienic environments. While stainless steel remains non-corrosive and easy to clean, the patterned finish prioritizes aesthetic value alongside durability. Facilities like hotels, restaurants, and commercial buildings frequently choose patterned SS corner guards for both their functional strength and visual appeal.
The flush-mount design eliminates protruding edges, helping maintain a streamlined wall surface. These guards also minimize hollow spots around corners, ensuring a solid and durable installation. For commercial projects that require attractive, long-lasting corner protection, Flush-Mount patterned SS corner guards provide a smart, reliable solution. They offer both form and function in one easy-to-maintain product.
Flush-Mount Patterned SS Corner Guard Features:
- Manufactured from type 304 #4 finish patterned stainless steel
- Standard and custom wing sizes available
- Standard and custom heights available
- Standard and custom corner radii available
- Other stainless steel grades and finishes available
Available options
-
SKU#:
CGP-300
-
Material:
Type 304 #4 satin patterned stainless steel. Gauges vary.
-
Mounting Options:
Mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
3-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
CGP-300 Patterned Stainless Steel Corner Guard
Flush-mount corner guard manufactured from type 304 #4 satin finish patterned stainless steel with 3-inch wing size.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Patterned Stainless Steel
5-SM
6-OM
Cambridge
Hammertone
Leathergrain
Oxford
Quilted
Stucco
TreadTex
Woodgrain
CGP-300 | 3-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CGP-200
-
Material:
Type 304 #4 finish patterned stainless steel. Gauges vary.
-
Mounting Options:
Mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
CGP-200 Patterned Stainless Steel Corner Guard
Flush-mount corner guard manufactured from type 304 #4 satin finish patterned stainless steel with 2-inch wing size.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Patterned Stainless Steel
5-SM
6-OM
Cambridge
Hammertone
Leathergrain
Oxford
Quilted
Stucco
TreadTex
Woodgrain

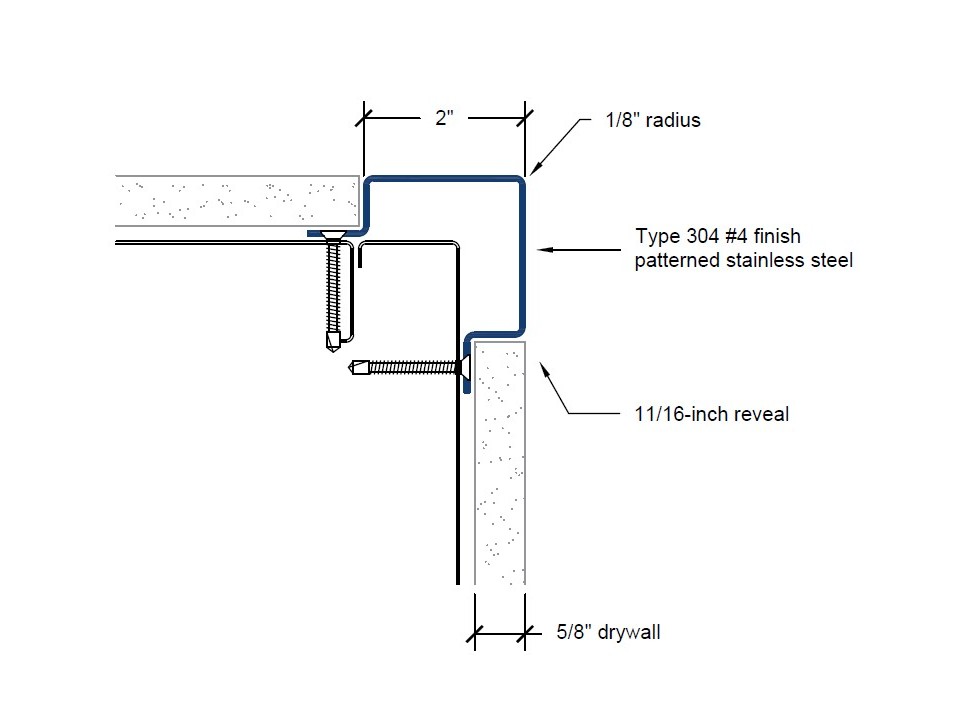

CGP-200 | 2-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CGP-150
-
Material:
Type 304 #4 finish patterned stainless steel. Gauges vary.
-
Mounting Options:
Mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
1 1/2-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
CGP-150 Patterned Stainless Steel Corner Guard
Flush-mount corner guard manufactured from type 304 #4 satin finish patterned stainless steel with 1 1/2-inch wing size.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Patterned Stainless Steel
5-SM
6-OM
Cambridge
Hammertone
Leathergrain
Oxford
Quilted
Stucco
TreadTex
Woodgrain

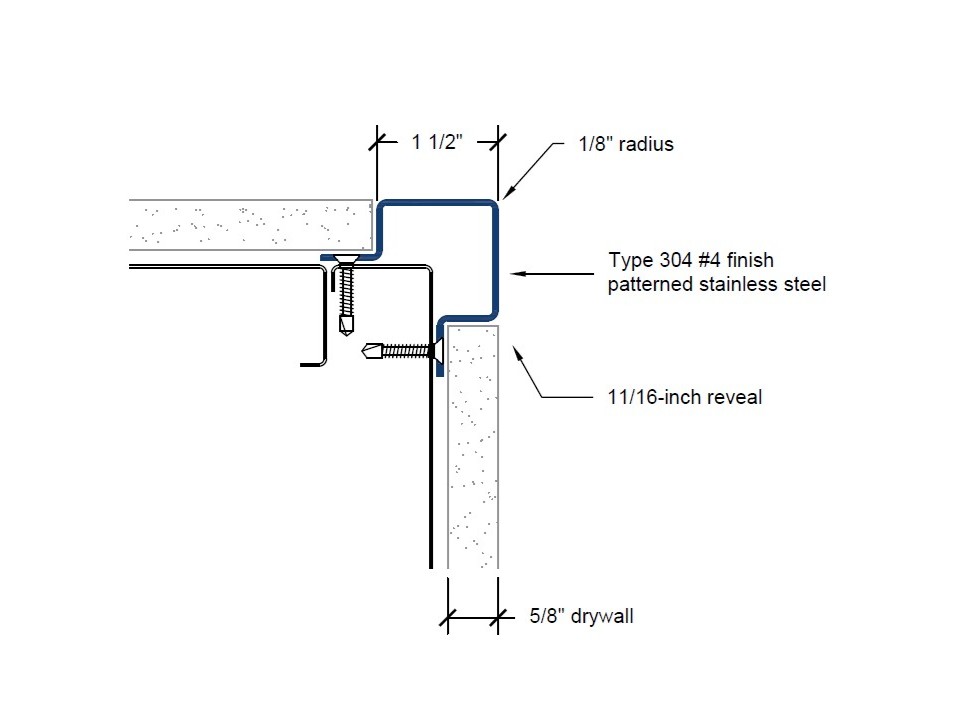

CGP-150 | 1 1/2-inch wing; 90-deg; 1/8-inch radius
No custom options are available for this product.
-
SKU#:
CGP-305
-
Material:
Type 304 #4 finish patterned stainless steel. Gauges vary.
-
Mounting Options:
Mechanical fasteners
-
Standard Sizes:
48-inch, 96-inch, 120-inch
-
Wing Size:
3-inch
-
More Info:
Custom wing sizes, angles, heights, and radiuses available. Other stainless steel grades and finishes available.
CGP-305 Patterned Stainless Steel Corner Guard
Flush-mount corner guard manufactured from type 304 #4 satin finish patterned stainless steel with 3-inch wing size and 3/4-inch corner radius.
Select the files that you want to download and click “Download” to get the files.
Roll over a color or texture sample to view a larger swatch.
Click the colors or textures required for your swatch request.
Patterned Stainless Steel
5-SM
6-OM
Cambridge
Hammertone
Leathergrain
Oxford
Quilted
Stucco
TreadTex
Woodgrain

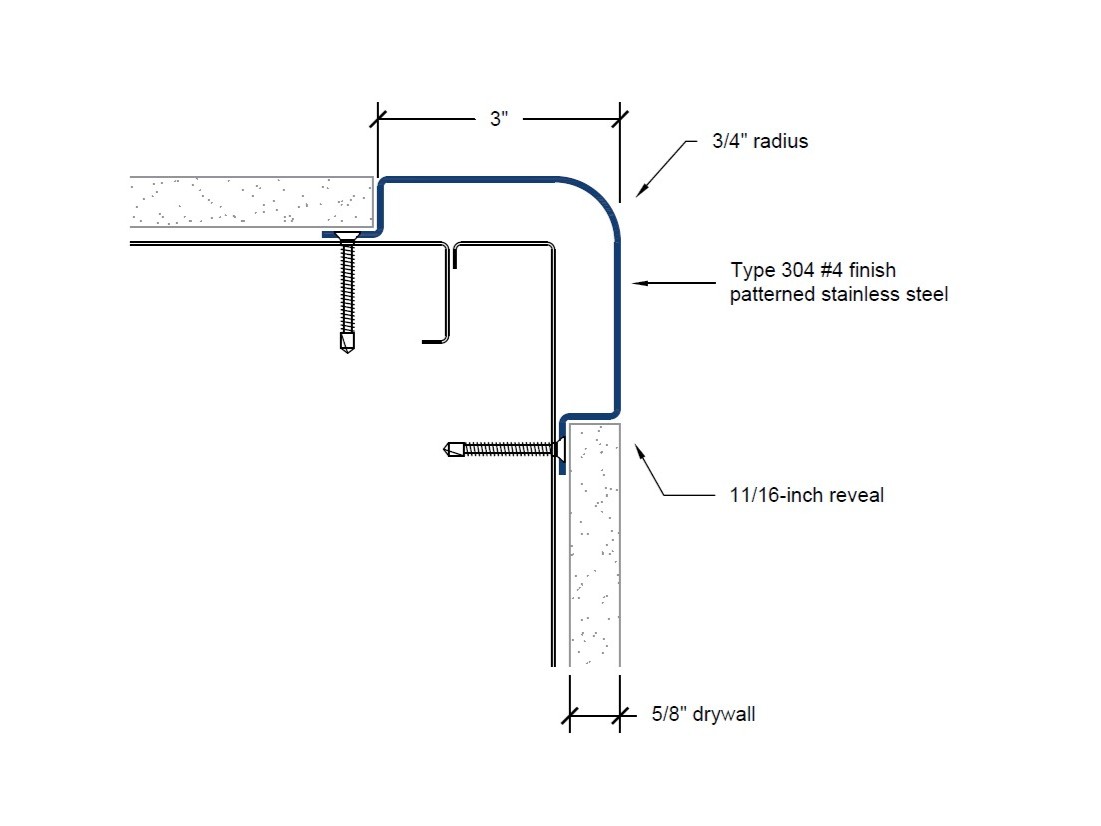

CGP-305 | 3-inch wing; 90-deg; 3/4-inch radius
No custom options are available for this product.
