CRS-4SS Stainless Steel Crash Rail

Stainless steel crash rail with a flat face profile that mounts to the wall with a continuous wood retainer.

The stainless steel crash rail CRS-4SS combines strength, simplicity, and adaptability to protect walls in demanding commercial environments. Fabricated from type 304 stainless steel, this crash rail features a clean rectangular profile with a flat face, making it well-suited for both functional and aesthetic applications. It includes stainless steel end plates for a finished appearance at each termination.

The CRS-4SS crash rail installs using a continuous wood retainer that runs the full length of the rail. This mounting method provides solid backing with no hollow spots, ensuring even load distribution and dependable impact resistance throughout the entire system. Unlike intermittent bracket systems, the continuous retainer enhances structural stability in high-traffic areas.

The CRS-4SS wall guard offers flexibility during installation without compromising performance because it is cut to fit on-site. Its stainless steel construction resists corrosion and impact, making it ideal for hygienic and high-traffic areas. Although it differs from the CRS-4SSW in that it uses end plates rather than welded ends, the system still delivers a clean and professional look.

The stainless steel crash rail CRS-4SS is commonly used in hospitals, laboratories, food processing facilities, and pharmaceutical environments. It performs reliably in corridors, kitchens, clean rooms, and utility spaces, especially where wall protection must stand up to carts, equipment, and harsh cleaning chemicals.

This stainless steel wall guard pairs rugged performance with straightforward installation. Its flat-face design aligns well with modern interiors, while the wood backing ensures full support along the wall. With its durable finish and practical configuration, it offers long-lasting protection in even the most challenging settings.

Overall, the CRS-4SS stainless steel crash guard provides strong, hygienic wall protection with the flexibility of field-cut installation and the dependability of a solid wood backing.

CRS-4SS Stainless Steel Crash Rail Features:

  • Manufactured from 16 gauge type 304 #4 finish stainless steel
  • Stainless steel end plates
  • Continuous wood retainer
  • Standard and custom profiles available
  • Other stainless steel grades and finishes available
  • Other continuous retainer options available

Available options

  • SKU#:

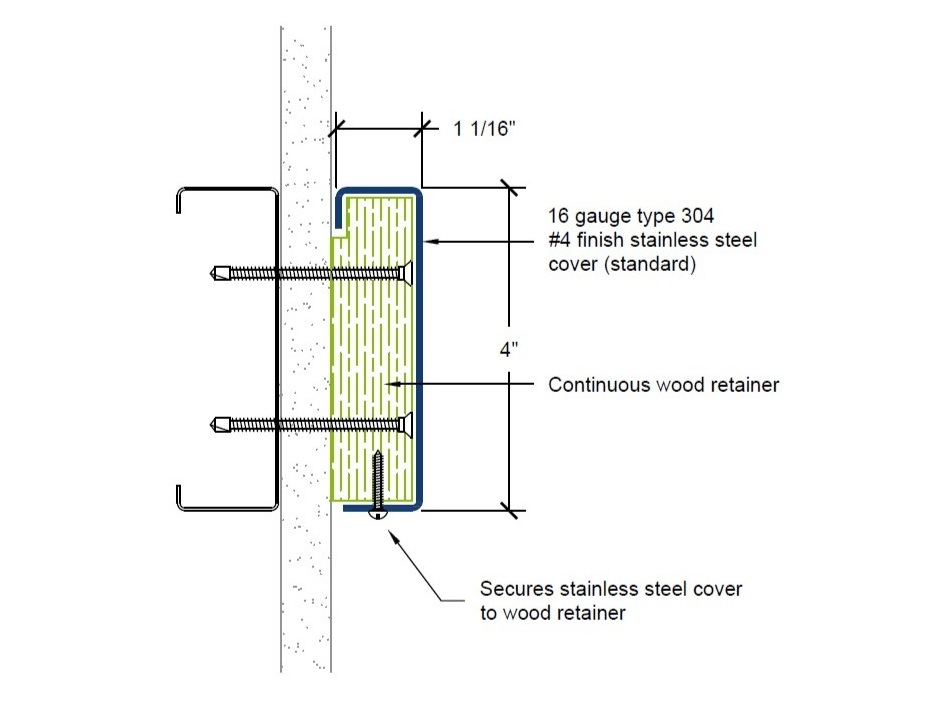

    CRS-4SS

  • Material:

    16 gauge type 304 #4 finish stainless steel rail with continuous wood retainer

  • Mounting Options:

    Mechanical fasteners (by others)

  • Profile:

    4-inch height x 1 1/16-inch depth

  • More Info:

    CRS-4SS is supplied in standard lengths and cut to fit in the field by installers. Custom profiles available. Other stainless steel grades and finishes available. Other continuous retainer options available.

CRS-4SS Standard Lengths

CRS-4SS Standard Lengths

CRS-4SS crash rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

CRS-4SS
ECS-4SS End Plate

ECS-4SS End Plate

End plates cap the end points of each crash rail segment. End plates secure to continuous retainer with fasteners through pre-drilled countersunk holes.

ECS-4SS

Select the files that you want to download and click “Download” to get the files.

Cad-drawing

dwg

Installation-instructions

pdf

Cleaning-maintenance

pdf

Roll over a color or texture sample to view a larger swatch.

Click the colors or textures required for your swatch request.

Stainless Steel

#4 finish

CRS-4SS | 4-inch profile

No custom options are available for this product.

    Note: You may upload only one PDF file (2MB file size).

    Click to browse
    or drag and drop your files


    Clear

    • SKU#:

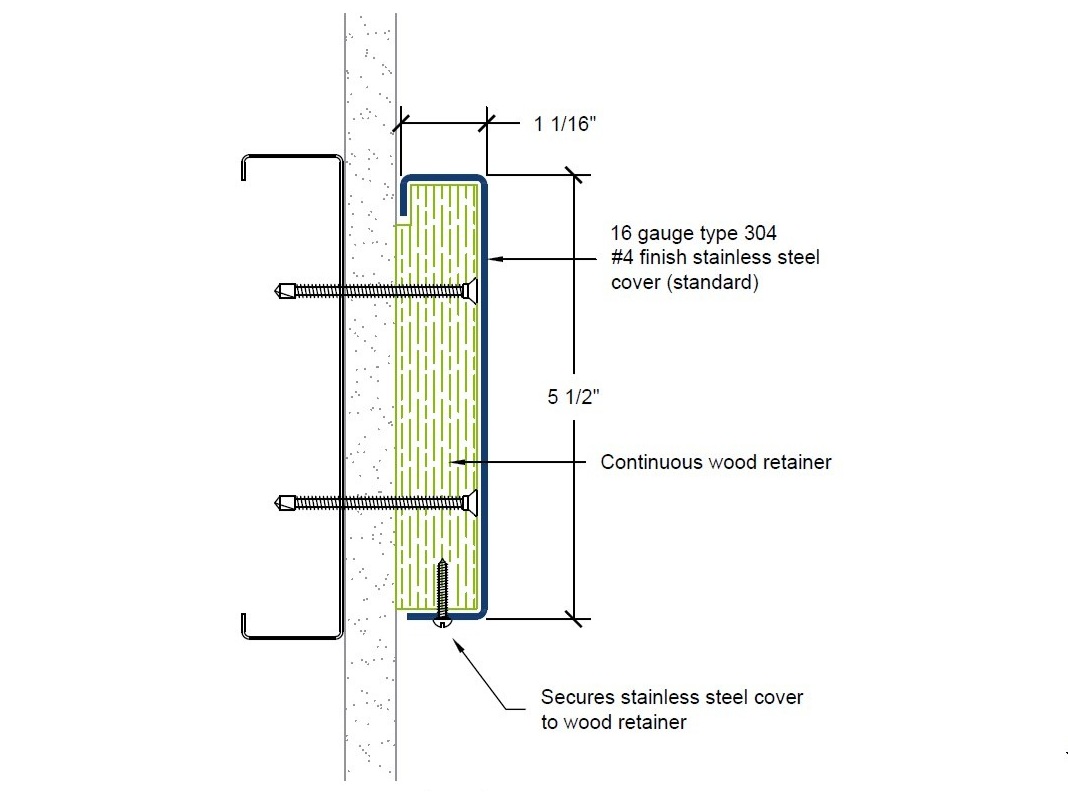

      CRS-55SS

    • Material:

      16 gauge type 304 #4 finish stainless steel rail with continuous wood retainer

    • Mounting Options:

      Mechanical fasteners (by others)

    • Profile:

      5 1/2-inch height x 1 1/16-inch depth

    • More Info:

      CRS-55SS is supplied in standard lengths and cut to fit in the field by installers. Custom profiles available. Other stainless steel grades and finishes available. Other continuous retainer options available.

    CRS-55SS Standard Lengths

    CRS-55SS Standard Lengths

    CRS-55SS crash rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

    CRS-55SS
    ECS-55SS End Plate

    ECS-55SS End Plate

    End plates cap the end points of each crash rail segment. End plates secure to continuous retainer with fasteners through pre-drilled countersunk holes.

    ECS-55SS

    Select the files that you want to download and click “Download” to get the files.

    Cad-drawing

    dwg

    Installation-instructions

    pdf

    Cleaning-maintenance

    pdf

    Roll over a color or texture sample to view a larger swatch.

    Click the colors or textures required for your swatch request.

    Stainless Steel

    #4 finish

    CRS-55SS | 5 1/2-inch profile

    No custom options are available for this product.

      Note: You may upload only one PDF file (2MB file size).

      Click to browse
      or drag and drop your files


      Clear

      • SKU#:

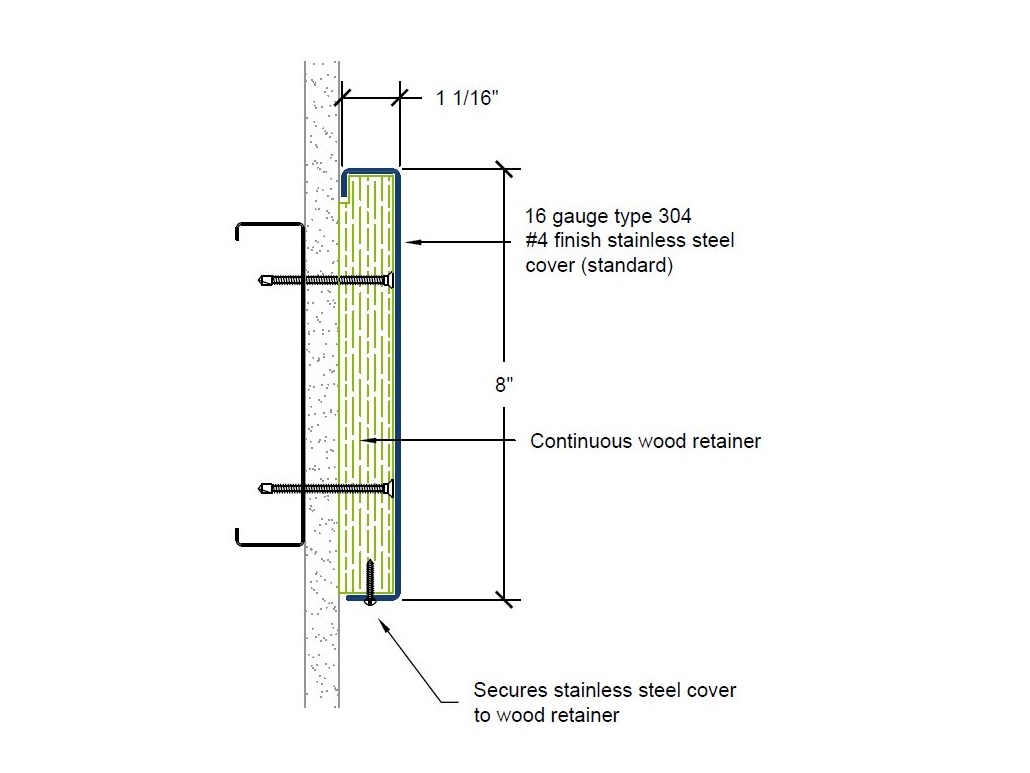

        CRS-8SS

      • Material:

        16 gauge type 304 #4 finish stainless steel rail with continuous wood retainer

      • Mounting Options:

        Mechanical fasteners (by others)

      • Profile:

        8-inch height x 1 1/16-inch depth

      • More Info:

        CRS-8SS is supplied in standard lengths and cut to fit in the field by installers. Custom profiles available. Other stainless steel grades and finishes available. Other continuous retainer options available.

      CRS-8SS Standard Lengths

      CRS-8SS Standard Lengths

      CRS-8SS crash rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

      CRS-8SS
      ECS-8SS End Plate

      ECS-8SS End Plate

      End plates cap the end points of each crash rail segment. End plates secure to continuous retainer with fasteners through pre-drilled countersunk holes.

      ECS-8SS

      Select the files that you want to download and click “Download” to get the files.

      Cad-drawing

      dwg

      Installation-instructions

      pdf

      Cleaning-maintenance

      pdf

      Roll over a color or texture sample to view a larger swatch.

      Click the colors or textures required for your swatch request.

      Stainless Steel

      #4 finish

      CRS-8SS | 8-inch profile

      No custom options are available for this product.

        Note: You may upload only one PDF file (2MB file size).

        Click to browse
        or drag and drop your files


        Clear

        • SKU#:

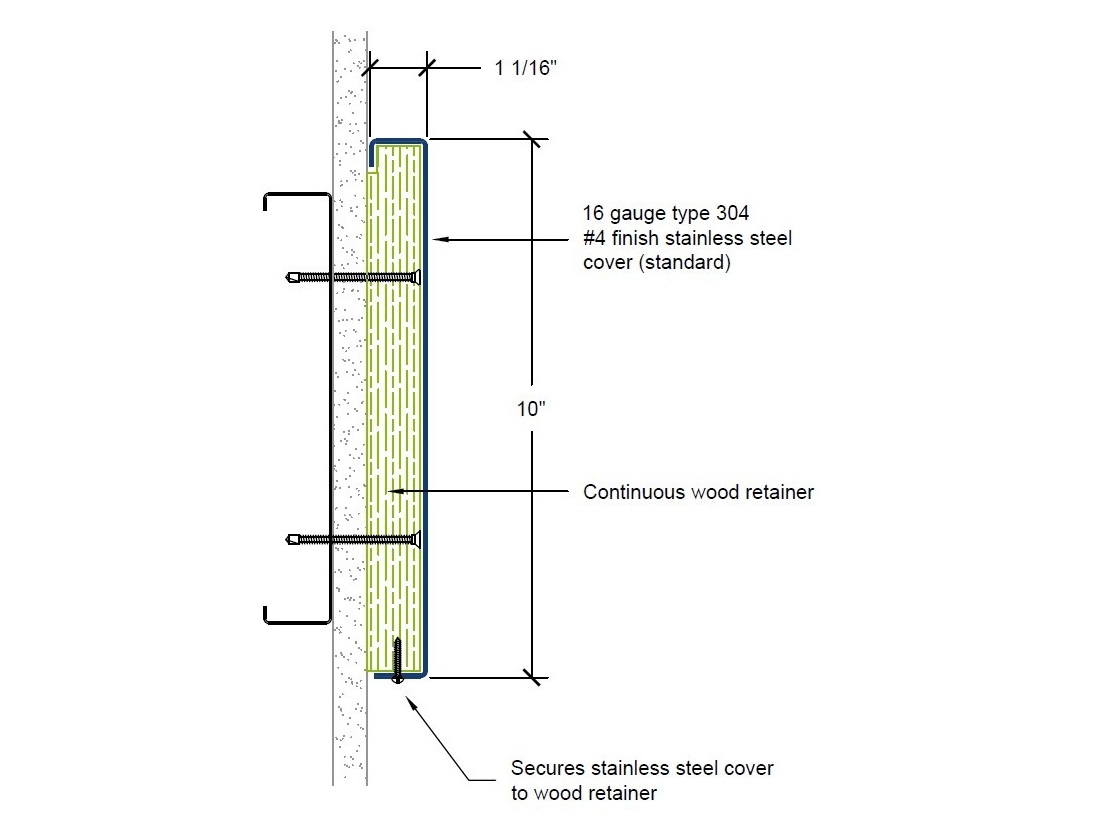

          CRS-10SS

        • Material:

          16 gauge type 304 #4 finish stainless steel rail with continuous wood retainer

        • Mounting Options:

          Mechanical fasteners (by others)

        • Profile:

          10-inch height x 1 1/16-inch depth

        • More Info:

          CRS-10SS is supplied in standard lengths and cut to fit in the field by installers. Custom profiles available. Other stainless steel grades and finishes available. Other continuous retainer options available.

        CRS-10SS Standard Lengths

        CRS-10SS Standard Lengths

        CRS-10SS crash rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

        CRS-10SS
        ECS-10SS End Plate

        ECS-10SS End Plate

        End plates cap the end points of each crash rail segment. End plates secure to continuous retainer with fasteners through pre-drilled countersunk holes.

        ECS-10SS

        Select the files that you want to download and click “Download” to get the files.

        Cad-drawing

        dwg

        Installation-instructions

        pdf

        Cleaning-maintenance

        pdf

        Roll over a color or texture sample to view a larger swatch.

        Click the colors or textures required for your swatch request.

        Stainless Steel

        #4 finish

        CRS-10SS | 10-inch profile

        No custom options are available for this product.

          Note: You may upload only one PDF file (2MB file size).

          Click to browse
          or drag and drop your files


          Clear

          • SKU#:

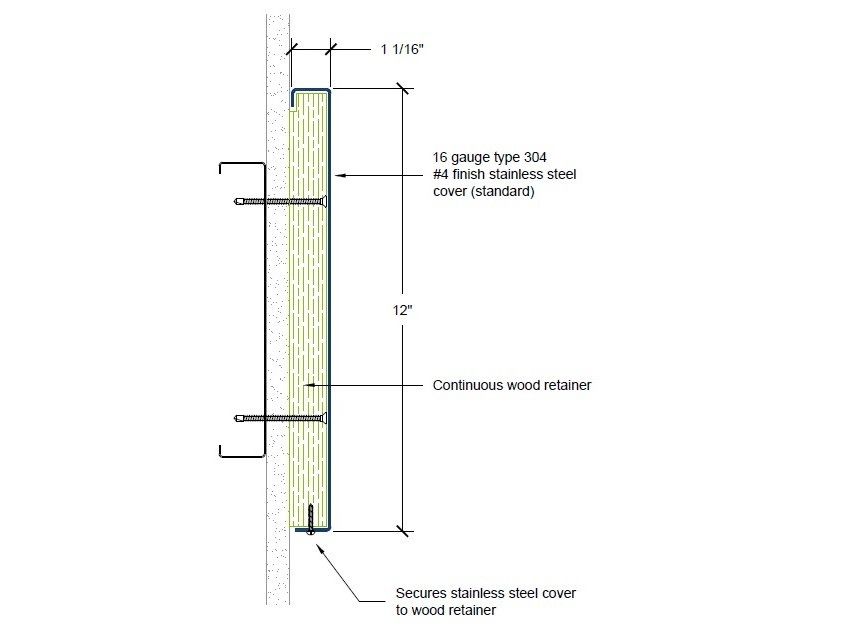

            CRS-12SS

          • Material:

            16 gauge type 304 #4 finish stainless steel rail with continuous wood retainer

          • Mounting Options:

            Mechanical fasteners (by others)

          • Profile:

            12-inch height x 1 1/16-inch depth

          • More Info:

            CRS-12SS is supplied in standard lengths and cut to fit in the field by installers. Custom profiles available. Other stainless steel grades and finishes available. Other continuous retainer options available.

          CRS-12SS Standard Lengths

          CRS-12SS Standard Lengths

          CRS-12SS crash rail is supplied in standard lengths and cut to fit in the field by installers. Standard lengths include 48-inch, 96-inch, and 120-inch. Custom lengths available.

          CRS-12SS
          ECS-12SS End Plate

          ECS-12SS End Plate

          End plates cap the end points of each crash rail segment. End plates secure to continuous retainer with fasteners through pre-drilled countersunk holes.

          ECS-12SS

          Select the files that you want to download and click “Download” to get the files.

          Cad-drawing

          dwg

          Installation-instructions

          pdf

          Cleaning-maintenance

          pdf

          Roll over a color or texture sample to view a larger swatch.

          Click the colors or textures required for your swatch request.

          Stainless Steel

          #4 finish

          CRS-12SS | 12-inch profile

          No custom options are available for this product.

            Note: You may upload only one PDF file (2MB file size).

            Click to browse
            or drag and drop your files


            Clear
